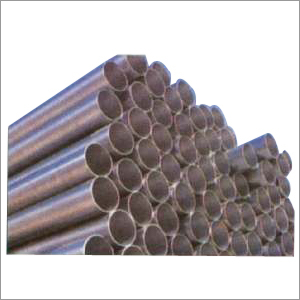

Large Diameter Pipes

Large Diameter Pipes
Large Diameter Pipes
Product Code : AT 01
Brand Name : AMBICA TUBES
Product Description

 STANDARD SIZES & WEIGHTS OF PIPES

Normal

Size

Outside

Diameter

Wall

Thickness

Class

Sched No

Plain End

Nominal Weight

Test Pressure min

Butt Welded

Grade A

Grade B

in in mm in mm     lb/ft kg/ft kg/m psi kg/cm2 psi kg/cm2 psi kg/cm2
1/8 .405 10.3 .068 1.7 std 40 .24 .11 .36 700 49.2 700 49.2 700 49.2
      .095 2.4 xs 80 .31 .14 .46 850 59.8 850 59.8 850 59.8
1/4 .540 13.7 .088 2.2 std 40 .42 .19 .63 700 49.2 700 49.2 700 49.2
      .119 3.0 xs 80 .54 .24 .80 850 59.8 850 59.8 850 59.8
3/8 .675 17.1 .091 2.3 std 40 .57 .26 .85 700 49.2 700 49.2 700 49.2
      .126 3.2 xs 80 .74 .34 1.10 850 59.8 850 59.8 850 59.8
1/2 .840 21.3 .109 2.8 std 40 85 .39 1.26 700 49.2 700 49.2 700 49.2
      .147 3.7 xs 80 1.09 .49 1.26 850 59.8 850 59.8 850 59.8
      .294 7.5 xxs .... 1.71 .78 2.54 1,000 70.3 1,000 70.3 1,000 70.3
3/4 1.050 26.7 .113 2.9 std 40 1.13 .51 1.68 700 49.2 700 49.2 700 49.8
      .154 3.9 xs 80 1.47 .67 2.19 850 59.8 850 59.8 850 59.8
      .308 7.8 xxs ... 2.44 1.11 3.63 1,000 70.3 1,000 70 .3 1,000 70.3
1 1.315 33.4 .133 3.4 std 40 1.68 .76 2.50 700 49.2 700 49.2 700 49.2
      .179 4.5 xs 80 2.17 .98 3.23 850 59.8 850 59.8 850 59.8
      .358 9.1 xxs ... 3.66      1.66 5.45 1,000 70.3 1,000      70.3 1,000   70.3
1 1/4 1.660 42.2 .140 3.6 std 40 2.27 1.03 3.38 1,000 70.3 1,000 70.3 1,000 77.3
      .191 4.9 xs 80 3.00 1.36 4.46 1,300 91.4 1,500 145.5 1,600 112.5
      .382 9.7 xxs ... 5.21 2.36 7.75 1,400 98.4 1,800 126.6 1,900 133.6
1 1/2 1.900 48.3 .145 3.7 std 40 2.72 1.23 4.05 1,000 70.3 1,000 70.3 1,100 77.3
      .200 5.1 xs 80 3.63 1.65 5.40 1,300 91.4 1,500 105.5 1,600 112.5
      .400 10.2 xxs ... 6.41 2.91 9.54 1,400 98.4 1,800 126.6 1,900 133.6
2 2.375 60.3 .154 3.9 std 40 3.65 1.66 5.43 1,000 70.3 2,300 161.7 2,500 175.8
      .218 5.5 xs 80 5.02 2.28 7.47 1,300 91.4 2,500 175.8 2,500 175.8
      .344 8.8 .... 160 7.46 3.38 11.10     2,500 175.8 2,500 175.8
      .436 11.1 xxs ... 9.03 4.10 13.44 1,400 98.4 2,500 175.8 2,500 175.8
2 1/2 2.875 73.0 .203 5.2 std 40 5.79 2.63 8.62 1,000 70.3 2,500 175.8 2,500 175.8
      .276 7.0 xs 80 7.66 3.47 11.40 1,300 91.4 2,500 175.8 2,500 175.8
      .375 9.5 ... 160 10.01 4.54 14.90 1,400 98.4 2,500 175.8 2,500 175.8
      .552 14.0 xxs ... 13.70 6.21 20.39 1,400 98.4 2,500 175.8 2,500 175.8
3 3.500 88.9 .188 4.8 ... .. 6.63 3.01 9.87 1,000 70.3 ... ... ... ..
      .216 5.5 std 40 7.58 3.44 11.28 1,000 70.3 2,200 154.7 2,500 175.8
      .300 7.6 xs 80 10.25 4.65 15.25 1,300 91.4 2,500 175.8 2,500 175.8
      .438 11.1 ... 160 14.31 6.49 21.30 ... ... 2,500 175.8 2,500 175.8
      .600 15.2 xxs ... 18.58 8.43 27.65 ... .... 2,500 175.8 2,500 175.8
3 1/2 4.000 101.6 .188 4.8 ... ... 7.63 3.46 11.35 1,200 84.4 ... ... ... ....
      .226 5.7 std 40 9.11 4.13 13.56 1,200 84.4 2,000 140.6 2,400 168.7
      .318 8.1 xs 80 12.51 5.67 18.62 1,700 119.5 2,800 196.9 2,800 196.9
4 4.500 114.3 .156 4.0 ... ... 7.25 3.29 10.79 1,000 70.3 ... .. .. ..
      .188 4.8 ... ... 8.64 3.92 12.86 1,200 84.4 ... ... .. ...
      .219 5.6 .. .. 10.00 4.54 14.88 1,200 84.4 ... ... ... ..
      .237 6.0 std 40 10.79 4.89 16.06 1,200 84.4 1,900 133.6 2,200 154.7
      .337 8.6 xs 80 14.98 6.79 22.29 1,700 119.5 2,700 189.8 2,800 196.9
      .438 11.1 ... 120 18.98 8.61 28.25 .. .. 2,800 196.9 2,800 196.9
      .531 13.5 ... 160 22.52 10.21 33.51 ... .. 2,800 196.9 2,800 196.9
      .674 17.1 xxs ... 27.54 12.49 40.98 ... .. 2,800 196.9 2,800 196.9
5 5.563 141.3 .258 6.6 std 40 14.62 6.63 21.76 ...   1,700 119.5 1,900 133.6
      .375 9.5 xs 80 20.78 9.43 30.92 ... .. 2,400 168.7 2,800 196.9
      .500 12.7 ... 120 27.04 12.27 40.24 .. ... 2,800 196.9 2,800 196.9
      .625 15.9 ... 160 32.96 14.95 49.05 ... ... 2,800 196.9 2,800 196.9
      .750 19.0 xxs .. 38.55 17.49 57.37 ... ... 2,800 196.9 2,800 196.9
